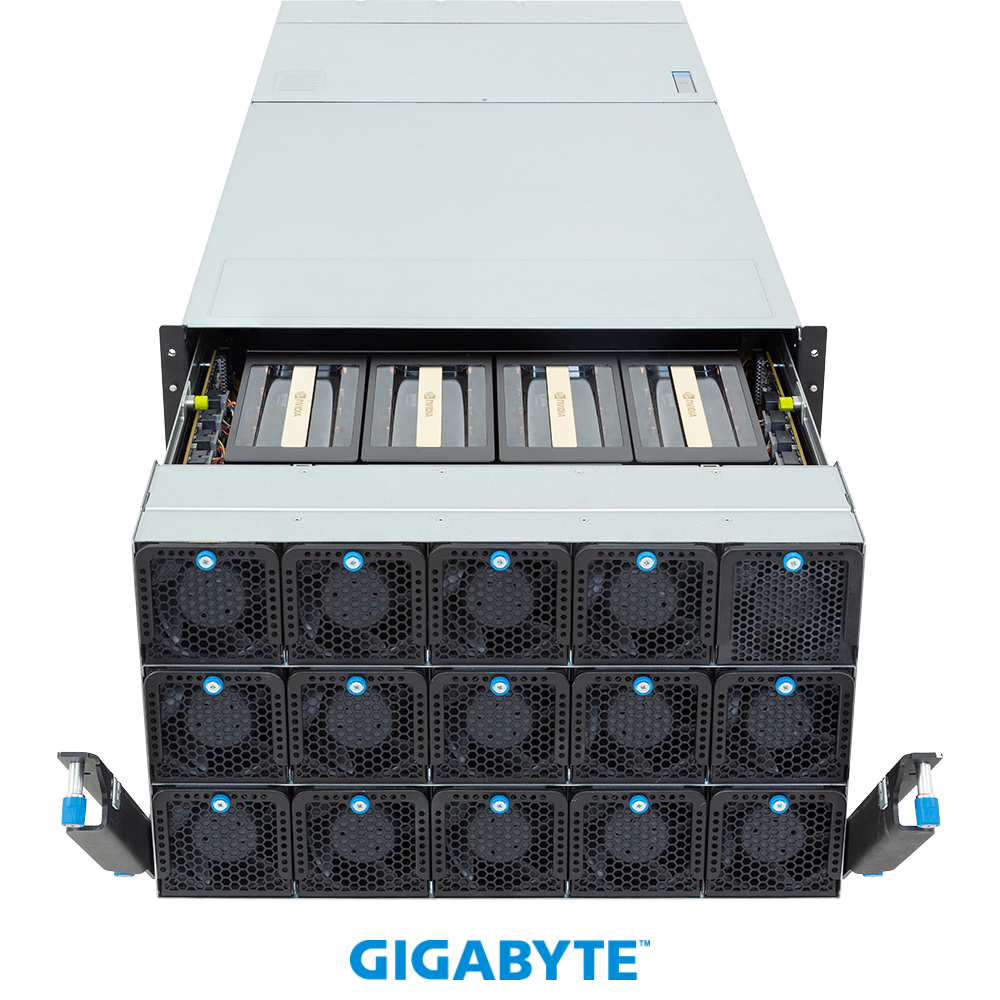

Gigabyte GPU ai Servers G893-ZD1-AAX5 HGX B200 NVL8 180GB Air-Cooled (8) AMD Turin (2) ai GPU server

G893-ZD1-AAX5

HPC/AI Server – AMD EPYC™ 9005/9004 – 8U DP NVIDIA HGX™ B200
  • NVIDIA HGX™ B200
  • 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5″ Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 6+6 3000W 80 PLUS Titanium redundant power supplies

Original price was: $469,900.00.Current price is: $399,900.00.

Payment Methods:
Add to compare
Add to wishlist
16 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Architecture for Modern Data Centers

Enterprise Solutions for AMD EPYC™ 9005 Series Processors

New AMD EPYC™ Family of Processors – Same Great SP5 Platform

The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.

5th Generation AMD EPYC™ Processors for SP5 Socket

3nmarchitecture

Increased transistor density alongside a reduction in power consumption

Up to 192CPU cores

Dedicated “Zen 5” & “Zen 5c” cores increase compute density

Up to 512MBL3 cache

An L3 cache increase helps to reduce latency in data-intensive operations

12channels

Memory capacity up to 9TB in a 2 DIMM per channel configuration

Up to 160PCIe lanes

Dual socket configuration adds a significant amount of I/O connectivity

CXL 2.0support

Disaggregated compute architecture possible via Compute Express Link

  • AMD EPYC™ 9005 Series processors require OEM enablement and a BIOS update from your server or motherboard manufacturer if used with a motherboard designed for the SP5 socketed AMD EPYC™ 9004 Series processors. Contact your system manufacturer prior to purchase to determine compatibility.
  • CXL Type 1&2 devices and PCIe link encryption support dependent upon ecosystem readiness; type 2 PoC only.
  • CXL peripheral support varies by product. Please refer to the QVL list for validated configurations.

Select GIGABYTE for the AMD EPYC™ 9005 Platform

Accelerator Computing

High Performance

Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads while supporting the latest GPU and CXL technology.

Flexibility

Compute Density

With 192 CPU cores per socket, GIGABYTE’s 4-node servers support up to 1,536 CPU cores, allowing a far greater number of concurrent tasks to be done.

Availability

Fast & Stable Connectivity

Keeping pace with the challenges for next gen technology, well designed GIGABYTE boards provide users the signal integrity for fast PCIe 5.0 speeds.

Availability

Collaboration

AMD and GIGABYTE have maintained a healthy relationship that values shared knowledge and open communication in order to launch products in tandem.

Availability

Optimal Price

Our broad portfolio of products tailored to applications allow customers to only select server features they require while doing so at a lower TCO.

G893-ZD1-AAX5 Product Overview

G893-ZD1-AAX5 Block Diagram

High Performance

Supports NVIDIA HGX™ B200

The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 TB of GPU memory and 64 TB/s of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and HPC workloads. HGX B200 supports advanced networking options—at speeds up to 400 Gb/s—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 DPUs enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

User Friendly

Full-Height Add-In Cards

Full-Height Add-In Cards

Support full-height add-in cards on all PCIe expansion slots to accommodate DPUs and SuperNICs.

Easy Maintenance

Easy Maintenance

PCIe cage design and front-access motherboard/GPU trays for streamlined maintenance.

Flexible PSU Configuration

Flexible PSU Configuration

Hot-swappable, fully redundant PSUs with multiple connector options for enhanced flexibility.

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Dimensions (WxHxD, mm)
8U
447 x 351 x 923
Motherboard
MZB3-PE0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 500W[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory per processorAMD EPYC™ 9005:
RDIMM: Up to 6400 MT/sAMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Front (I/O board – CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
– Support NCSI function1 x 10/100/1000 Mbps Management LANRear (MLAN board – CDB66):
1 x 10/100/1000 Mbps Management LAN[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Video
Integrated in ASPEED® AST2600
– 1 x VGA port
Storage
Front hot-swap:
8 x 2.5″ Gen5 NVMe
– (NVMe from PEX89104)Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
SAS
N/A
RAID
N/A
Modular GPU
NVIDIA HGX™ B200 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board – CBG76:
– 8 x FHHL x16 (Gen5 x16), from PEX89104PCIe Bridge Board – CPBG045 x 2:
– 4 x FHHL x16 (Gen5 x16), from PEX89048
Front I/O
I/O board – CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board – CDB66:
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4
Security Modules
1 x TPM header with SPI interface
– Optional TPM2.0 kit: CTM012
Power Supply[#1]

6+6 3000W 80 PLUS Titanium redundant power supplies [1]

AC Input:
– 115-127V~/ 14.2A, 50-60Hz
– 200-220V~/ 15.8A, 50-60Hz
– 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
– 240Vdc/ 14A

DC Output:
– Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
– Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
– Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
Motherboard:
2 x 60x60x56mm (24,600/24,200rpm)
4 x 60x60x76mm (21,800/20,500rpm)PCIe slots:
4 x 80x80x56mm (15,500/14,900rpm)GPU tray:
15 x 80x80x80mm (19,600/15,600rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Packaging Dimensions
1200 x 800 x 620 mm
Packaging Content
1 x G893-ZD1-AAX5
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers
– Barebone with NVIDIA module: 6NG893ZD1DR000ACX5*
– Motherboard: 9MZB3PE0UR-000-3*
– L-shape Rail kit: 25HB2-UM6100-K0R
– CPU heatsink: 25ST1-563400-C1R
– Front panel board – CFPG540: 9CFPG540NR-00*
– Backplane board – CBPG641: 9CBPG641NR-00*
– Fan module 60x60x56mm: 25ST2-665623-S1R
– Fan module 60x60x76mm: 25ST2-667621-A0R
– Fan module 80x80x56mm: 25ST2-885622-A0R
– Fan module 80x80x80mm: 25ST2-888038-A0R
– PCIe bridge board – CPBG045: 9CPBG045NR-00*
– PCIe switch board – CBG76: 9CBG76NR-00*
– Rear MLAN board – CDB66: 9CDB66NR-00*
– Power supply: 25EP0-203K01-D0S
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
