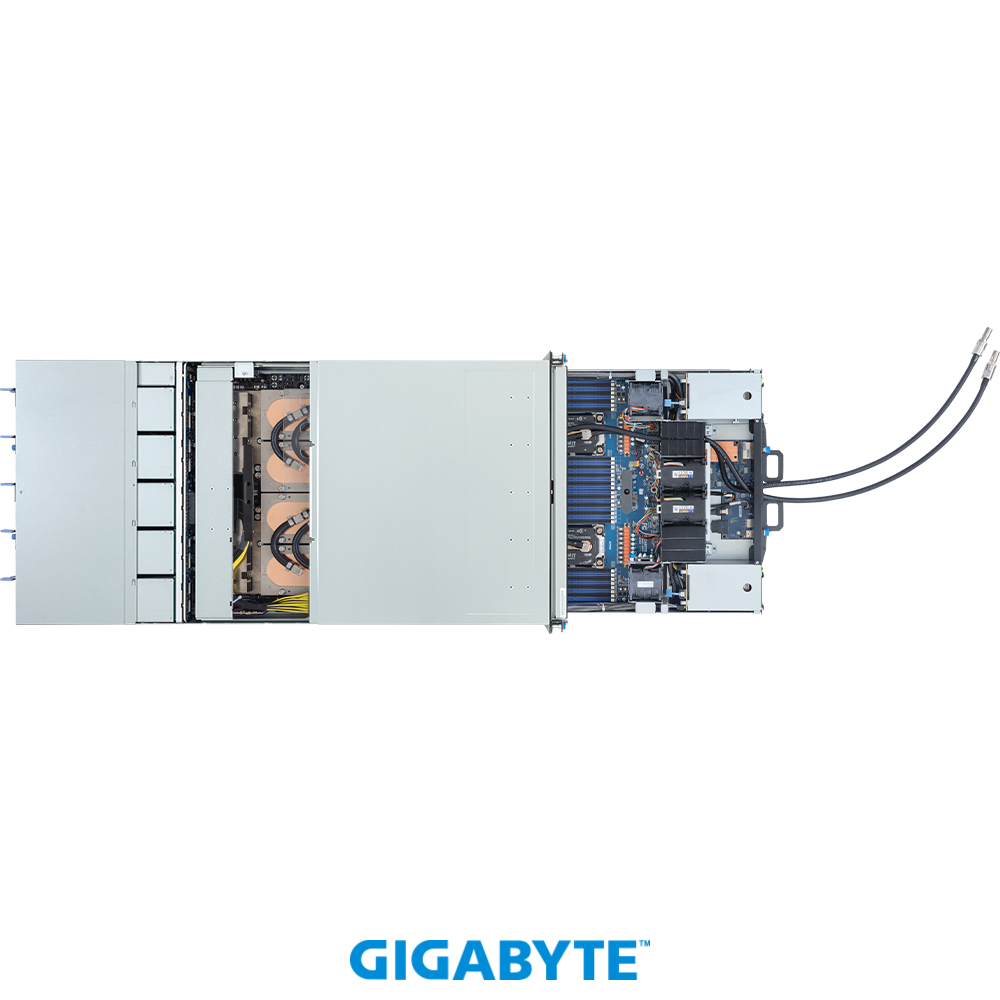

Gigabyte GPU ai Servers G4L3-SD1-LAX5 HGX B200 NVL8 180GB Partner-Cooled (8) Intel Emerald Rapids (2) ai GPU server

G4L3-SD1-LAX5

HPC/AI Server – 5th/4th Gen Intel® Xeon® Scalable – 4U DP NVIDIA HGX™ B200 DLC
  • Liquid-cooled NVIDIA HGX™ B200
  • CPU+GPU direct liquid cooling solution with leak detection
  • 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x2 and x1 interface
  • 8 x 2.5″ Gen5 NVMe/SATA hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 4+4 3000W 80 PLUS Titanium redundant power supplies

Original price was: $469,900.00.Current price is: $399,900.00.

Payment Methods:
Add to compare
Add to wishlist
10 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Where Compute Reigns

Enterprise Solutions for the Intel® Xeon® Scalable Processors

Accelerating Artificial Intelligence and Leading Efficiency

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Redefine Performance with 4th/5th Gen Intel® Xeon® Scalable Processors and Intel® Xeon® CPU Max Series

Acceleratorsbuilt-in*

Increase ROI while improving efficiency and performance

Up to 64cores

More tasks can be done simultaneously and faster with dedicated cores

DDR5support

Increased memory frequency and throughput with DDR5 RDIMM support

64GBHBM**

High bandwidth in-package memory massively speeds up data-intensive workloads

PCIe 5.0lanes

Increased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators

CXL 1.1support

Improve performance via memory coherency and direct accelerator memory access

* Different on-chip accelerators are supported depending on CPU SKUs and requires one-time activation. Please visit Intel’s official website or contact technical support for details.
** HBM is an Intel Xeon CPU Max Series only feature. Please check the server specifications for more information on support for the Intel Xeon CPU Max Series.

Why Choose GIGABYTE Liquid Cooling Servers?

Cool Performance

Cool Performance

Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving

Power Saving

A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction

Noise Reduction

Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record

Proven Track Record

The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability

Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use

Ease of Use

GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.

G4L3-SD1-LAX5 Product Overview

G4L3-SD1-LAX5 Block Diagram

High Performance

Supports NVIDIA HGX™ B200

The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 TB of GPU memory and 64 TB/s of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and HPC workloads. HGX B200 supports advanced networking options—at speeds up to 400 Gb/s—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 DPUs enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

User Friendly

Full-Height Add-In Cards

Full-Height Add-In Cards

Support full-height add-in cards on all PCIe expansion slots to accommodate DPUs and SuperNICs.

Easy Maintenance

Easy Maintenance

PCIe cage design and front-access motherboard/GPU trays for streamlined maintenance.

Flexible PSU Configuration

Flexible PSU Configuration

Hot-swappable, fully redundant PSUs with multiple connector options for enhanced flexibility.

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Dimensions (WxHxD, mm)
4U
447 x 175.5 x 901
Motherboard
MSB3-PE0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series

Dual processor, TDP up to 385W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
2 x LGA 4677
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
Support DDR5 RDIMM
8-Channel memory per processor

5th Gen Intel® Xeon®:
Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel® Xeon®:
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel® Xeon® Max Series:
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

LAN
Front (I/O board – CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
– Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear (MLAN board – CDB66):
1 x 10/100/1000 Mbps Management LAN

[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Video
Integrated in ASPEED® AST2600
– 1 x VGA port
Storage
Front hot-swap:
8 x 2.5″ Gen5 NVMe/SATA
– (NVMe from PEX89104)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x2, from PCH
1 x M.2 (2280/22110), PCIe Gen3 x1, from PCH

SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Modular GPU
Liquid-cooled NVIDIA HGX™ B200 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board – CBG76:
– 8 x FHHL x16 (Gen5 x16), from PEX89104

PCIe Bridge Board – CPBG045 x 2:
– 4 x FHHL x16 (Gen5 x16), from PEX89048

[Note] The ambient temperature is limited to 30°C when NVIDIA® BlueField®-3 DPUs/SuperNIC™ are installed.

Front I/O
I/O board – CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board – CDB66:
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface
– Optional TPM2.0 kit: CTM012
Power Supply[#1]
4+4 3000W 80 PLUS Titanium redundant power supplies [1]

AC Input:
– 115-127V~/ 14.2A, 50-60Hz
– 200-220V~/ 15.8A, 50-60Hz
– 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
– 240Vdc/ 14A

DC Output:
– Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
– Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
– Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
System Fans
Motherboard:
2 x 60x60x56mm
2 x 60x60x76mm

PCIe slots:
4 x 80x80x56mm

GPU tray:
4 x 60x60x38mm

Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.

Packaging Dimensions
1300 x 800 x 439 mm
Packaging Content
1 x G4L3-SD1-LAX5
6 x Carriers
1 x L-shape Rail kit
Part Numbers
– Barebone with NVIDIA module: 6NG4L3SD1DR000LBX5*
– Motherboard: 9MSB3PE0UR-000*
– L-shape Rail kit: 25HB2-A96102-K0R
– CoolIT CPU cold plate loop: 25ST7-10000I-C4R
– CoolIT GPU cold plate loop: 25ST7-3000ZF-C4R/25ST7-3000ZG-C4R
– CoolIT NVSwitch cold plate loop: 25ST7-3000ZE-C4R
– Front panel board – CFPG540: 9CFPG540NR-00*
– Backplane board – CBPG641: 9CBPG641NR-00*
– Fan module 60x60x38mm: 25ST2-663830-F1R
– Fan module 60x60x38mm: 25ST2-663831-F1R
– Fan module 60x60x56mm: 25ST2-665623-S1R
– Fan module 60x60x76mm: 25ST2-667621-A0R
– Fan module 80x80x56mm: 25ST2-885622-A0R
– PCIe bridge board – CPBG045: 9CPBG045NR-00*
– PCIe switch board – CBG76: 9CBG76NR-00*
– Rear MLAN board – CDB66: 9CDB66NR-00*
– Leak sensor board – CNBG72: 9CNBG72NR-00*
– Power supply: 25EP0-203K01-D0S
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
