Gigabyte GPU ai Servers G4L4-AD1-LAX5 HGX B200 NVL8 180GB Partner-Cooled (8) Intel Granite Rapids AP (2) ai GPU server

G4L4-AD1-LAX5

HPC/AI Server – Intel® Xeon® 6900-Series Processors – 4U DP NVIDIA HGX™ B200 DLC
  • Liquid-cooled NVIDIA HGX™ B200

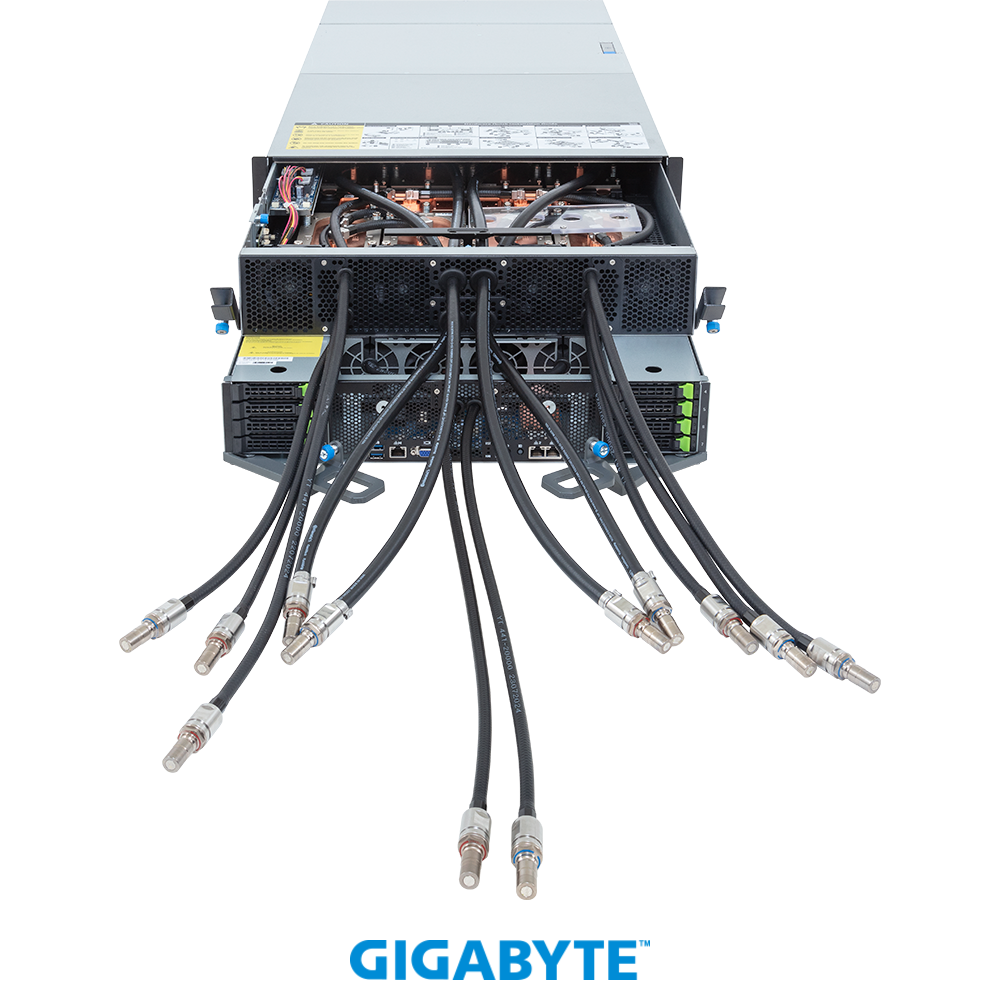

  • CPU+GPU direct liquid cooling solution with leak detection
  • 1.8 TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™
  • Dual Intel® Xeon® 6900-Series Processors
  • 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
  • Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
  • 2 x 10 Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 PCIe Gen5 x4 and x2
  • 8 x 2.5″ Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16
  • 8 x FHHL single-slot PCIe Gen5 x16
  • 4+4 3000 W 80 PLUS Titanium redundant power supplies

Original price was: $469,900.00.Current price is: $399,900.00.

Payment Methods:
Add to compare
Add to wishlist
14 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Boosting Individual Applications with On-Point Features

Intel® Xeon® 6 is a new generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge & IOT. Whether it’s high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.

Core Technology Aligned with Aspirations

Acceleratorsbuilt-in*

Incredible performance and efficiency improvements with the easy adoption of on-chip accelerators

8 or 12Channels

Increased memory frequency and throughput with DDR5 RDIMM support

PCIe 5.0lanes

Up to 136 lanes for 1S designs, supporting all the latest drives and accelerators

CXL 2.0support**

Flexible support between PCIe and CXL, utilizing DDR5 and CXL memory as one unified region

Up to 288E-cores per CPU

Core dense and optimized efficiency for cloud-native and hyperscale workloads

Intel Xeon 6 Processors with E-cores

Up to 128P-cores per CPU

Greater core performance with improved TCO, accelerating AI and compute intensive workloads

MRDIMMsupport

Unprecedented frequency on the advanced MRDIMM, boosting memory-intensive application to a whole new level

Intel Xeon 6 Processors with P-cores

* Different on-chip accelerators are supported depending on CPU SKUs, and they require a one-time activation. Please visit Intel’s official website or contact technical support for details.

** CXL peripheral support varies by product. Please refer to the QVL list for validated configurations.

Why Choose GIGABYTE Liquid Cooling Servers?

Cool Performance

Cool Performance

Servers will run incredibly stable and have high-performance from liquid cooled components that operate well below CPU TDP.

Power Saving

Power Saving

A liquid cooled server with less fans and running at lower speeds can achieve the same performance as an air-cooled server while consuming less power.

Noise Reduction

Noise Reduction

Servers require a lot of high-speed, high noise fans. GIGABYTE has found a way to reduce the noise by reducing the number of fans while using a liquid cooling solution.

Proven Track Record

Proven Track Record

The direct liquid cooling system supplier has 20 years of experience in cooling solutions for desktops PCs & data centers. GIGABYTE has 20+ years of experience as well.

Reliability

Liquid cooling solutions can be monitored with little need for maintenance. GIGABYTE and liquid cooling suppliers have warranties to cover components.

Ease of Use

Ease of Use

GIGABYTE servers paired with a liquid cooling kit can be mounted in a rack or connected to a building’s water system. And offers quick/easy/dry disconnects.

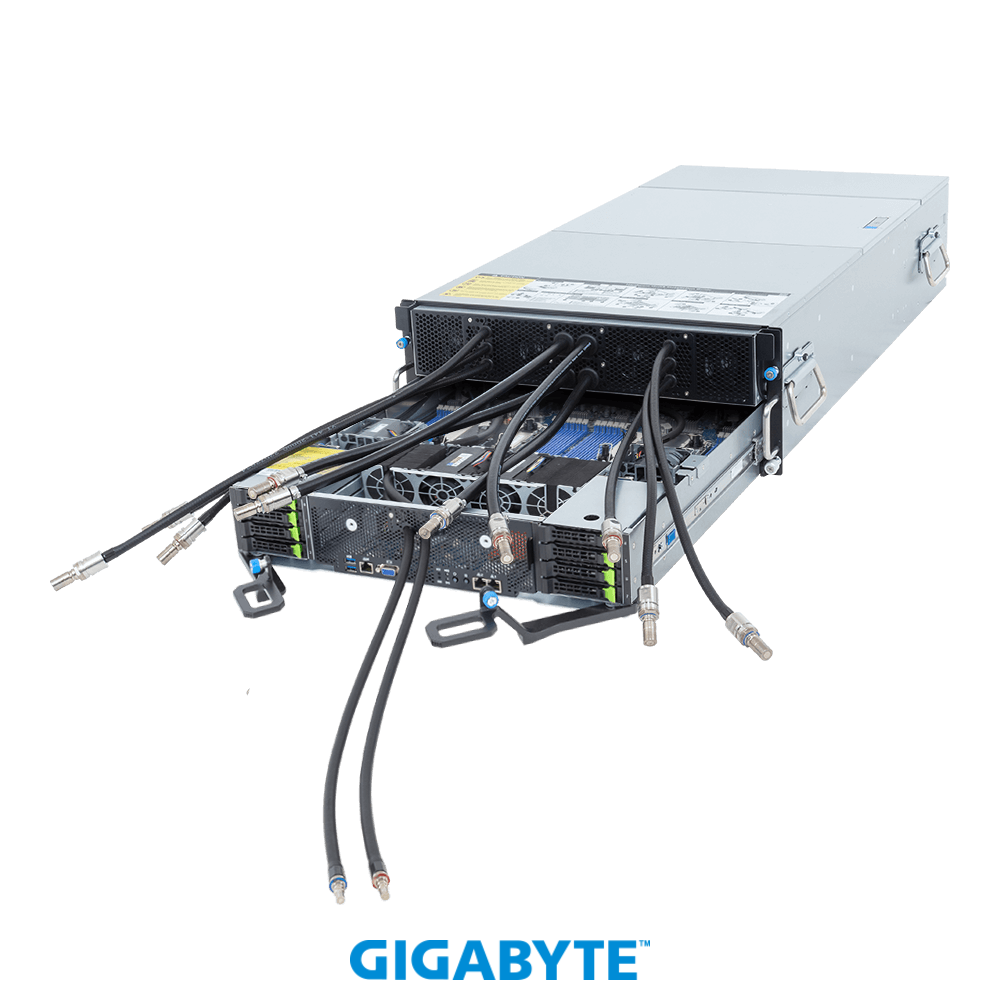

G4L4-AD1-LAX5 Product Overview

G4L4-AD1-LAX5 Block Diagram

High Performance

Supports NVIDIA HGX™ B200

The NVIDIA HGX™ B200 propels the data center into a new era of accelerating computing and generative AI, integrating NVIDIA Blackwell Tensor Core GPUs with a high-speed interconnect to accelerate AI performance at scale. Configurations of eight GPUs deliver unparalleled generative AI acceleration alongside a remarkable 1.4 TB of GPU memory and 64 TB/s of memory bandwidth for 15X faster real-time trillion-parameter-model inference, 12X lower cost, and 12X less energy. This extraordinary combination positions HGX B200 as a premier accelerated x86 scale-up platform designed for the most demanding generative AI, data analytics, and HPC workloads. HGX B200 supports advanced networking options—at speeds up to 400 Gb/s—delivering the highest AI performance with NVIDIA Quantum-2 InfiniBand and the Spectrum™-X Ethernet platform. HGX B200 with NVIDIA® BlueField®-3 DPUs enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

User Friendly

Full-Height Add-In Cards

Full-Height Add-In Cards

Support full-height add-in cards on all PCIe expansion slots to accommodate DPUs and SuperNICs.

Easy Maintenance

Easy Maintenance

PCIe cage design and front-access motherboard/GPU trays for streamlined maintenance.

Flexible PSU Configuration

Flexible PSU Configuration

Hot-swappable, fully redundant PSUs with multiple connector options for enhanced flexibility.

Dimensions (WxHxD, mm)
4U
447 x 175.3 x 901
Motherboard
MAB4-PE0
CPU
Intel® Xeon® 6 Processors
– Intel® Xeon® 6900-Series ProcessorsDual processor, TDP up to 500 W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
2 x LGA 7529
Socket BR
Chipset
System on Chip
Memory
24 x DIMM slots
Support DDR5 RDIMM/MRDIMM [1]
12-Channel memory per processor
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s[1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores.

LAN
Front (I/O board):
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
– Support NCSI function1 x 10/100/1000 Mb/s Management LAN

Rear (MLAN board):
1 x 10/100/1000 Mb/s Management LAN

[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Video
Integrated in ASPEED® AST2600
– 1 x VGA port
Storage
Front hot-swap:
8 x 2.5″ Gen5 NVMe
– (NVMe from PEX89104)Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1

Modular GPU
Liquid-cooled NVIDIA HGX™ B200 with 8 x SXM GPUs
PCIe Expansion Slots
8 x FHHL x16 (Gen5 x16), from PEX89104
4 x FHHL x16 (Gen5 x16), from PEX89048[Note] The ambient temperature is limited to 30°C when NVIDIA® BlueField®-3 DPUs/SuperNIC™ are installed.

Front I/O
I/O board:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board:
1 x MLAN port
Security Modules
1 x TPM header with SPI interface
– Optional TPM 2.0 kit: CTM012
Power Supply[#1]

4+4 3000 W 80 PLUS Titanium redundant power supplies [1]

AC Input:
– 115-127V~/ 14.2A, 50-60Hz
– 200-220V~/ 15.8A, 50-60Hz
– 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
– 240Vdc/ 14A

DC Output:
– Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
– Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
– Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

System Fans
Motherboard:
2 x 60x60x56mm
2 x 60x60x76mmPCIe slots:
4 x 80x80x56mm

GPU tray:
4 x 60x60x38mm

Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.

Packaging Dimensions
1300 x 800 x 444 mm
Packaging Content
1 x G4L4-AD1-LAX5
2 x Carriers
1 x L-shape Rail kit
Part Numbers
– Barebone with NVIDIA module: 6NG4L4AD1DR000LAX5*
– Motherboard: 9MAB4PE0UR-000*
– L-shape Rail kit: 25HB2-A96102-K0R
– Front panel board – CFPG440: 9CFPG440NR-00*
– Backplane board – CBPG641: 9CBPG641NR-00*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
