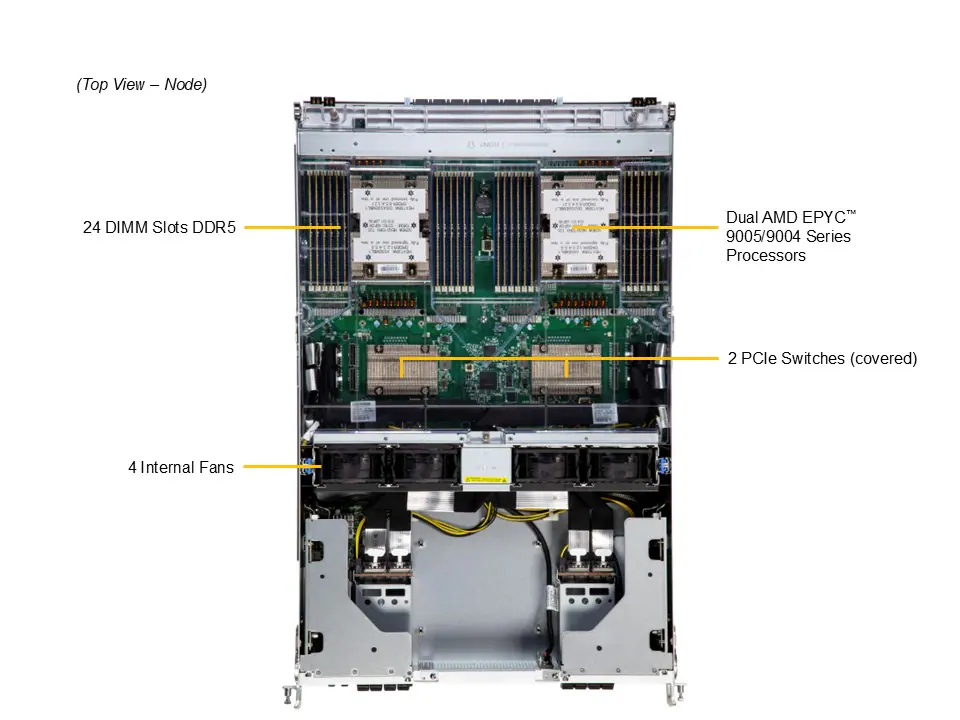

Supermicro SuperServer AS-8126GS-NB3RT HGX B300 NVL8 270GB Air-Cooled (8) AMD Turin (2) AI Graphics Card GPU Server

Supermicro Gold Series AS -8126GS-NB3RT | 8U GPU Server

DP AMD 8U System with NVIDIA HGX B300 8-GPU

Key Applications

  • Scientific Research
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Finance Services and Fraud Detection
  • AI/Deep Learning Training and Inference
  • Large Language Model (LLM) and Generative AI
  • High Performance Computing (HPC)
  • Autonomous Vehicle Technologies

Key Features



  1. Dual AMD EPYC™ 9005/9004 Series Processors
  2. NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
  3. 24 DIMMs, with up to 6TB at 6400MT/s DDR5 memory
    (Please check System Memory Section for detail)
  4. 8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives
  5. 8 NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two dual-port NVIDIA BlueField®-3 DPUs
  6. 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
    (Power supply full redundancy based on configuration and application load)

Original price was: $1,969,900.00.Current price is: $1,899,900.00.

Payment Methods:
Add to compare
Add to wishlist
20 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Product SKUs
AS -8126GS-NB3RT
AS -8126GS-NB3RT-01-G2 Gold Series version with pre-configured components
Motherboard
Super H14DSG-OM
Processor
CPU
  • Dual processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Core Count
  • Up to 384C/768T
Note
  • Supports up to 500W TDP CPUs
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX B300 8-GPU (288GB)
  • View GPU Options
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
Input / Output
USB
  • 1 USB 3.0 Type-A port(Front)
  • 1 USB 2.0 Type-A port(Front)
Video
  • 1 VGA port
  • 1 mini-DP port
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 8U Rackmount
Model
  • CSE-GP807TS-R000NP
Dimensions and Weight
Height
  • 13.8″ (356 mm)
Width
  • 17.6″ (449 mm)
Depth
  • 37.4″ (950 mm)
Package
  • 26.38″ (H) x 28.74″ (W) x 50.39″ (D)
Weight
  • Gross Weight: 302 lbs (137 kg)
  • Net Weight: 263 lbs (119 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 12 heavy duty fans with optimal fan speed control
Power Supply
6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (WxHxL) 106.5 x 82.1 x 245.3 mm
Input 5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
+12V Max: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Certification Titanium Level94%+  Titanium Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
