Gigabyte GPU ai Servers G894-AD3-AAX7 HGX B300 NVL8 270GB Air-Cooled (8) Intel Granite Rapids AP (2)

G894-AD3-AAX7

HPC/AI Server – Intel® Xeon® 6 Processors – 8U DP NVIDIA HGX™ B300
# AI# HPC# AI Training# AI Inference
  • NVIDIA HGX™ B300
  • 8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX®-8 SuperNIC™
  • 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual Intel® Xeon® 6900-Series Processors
  • 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
  • Compatible with NVIDIA® BlueField®-3 DPUs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen5 x4 and x2 interface
  • 8 x 2.5″ Gen5 NVMe hot-swap bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 12 x 3000W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NG894AD3DR000AAX7*

Original price was: $1,999,900.00.Current price is: $1,899,900.00.

Payment Methods:
Add to compare
Add to wishlist
11 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Dimensions (WxHxD, mm)
8U
447 x 351 x 923
Motherboard
MAB4-PE2
CPU
Intel® Xeon® 6 Processors
– Intel® Xeon® 6900-Series Processors

Dual processor, TDP up to 500W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
2 x LGA 7529
Socket BR
Chipset
System on Chip
Memory
24 x DIMM slots
Support DDR5 RDIMM/MRDIMM [1]
12-Channel memory per processor
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

[1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores.

LAN
Front (I/O board):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
– Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear:
8 x 800 Gb/s OSFP InfiniBand XDR or dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™

Rear (MLAN board):
1 x 10/100/1000 Mbps Management LAN

[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

Video
Integrated in ASPEED® AST2600
– 1 x VGA port
Storage
Front hot-swap:
8 x 2.5″ Gen5 NVMe
– (NVMe from PEX89072)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1

Modular GPU
NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board x 2:
4 x FHHL x16 (Gen5 x16), from PEX89072
Front I/O
I/O board:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

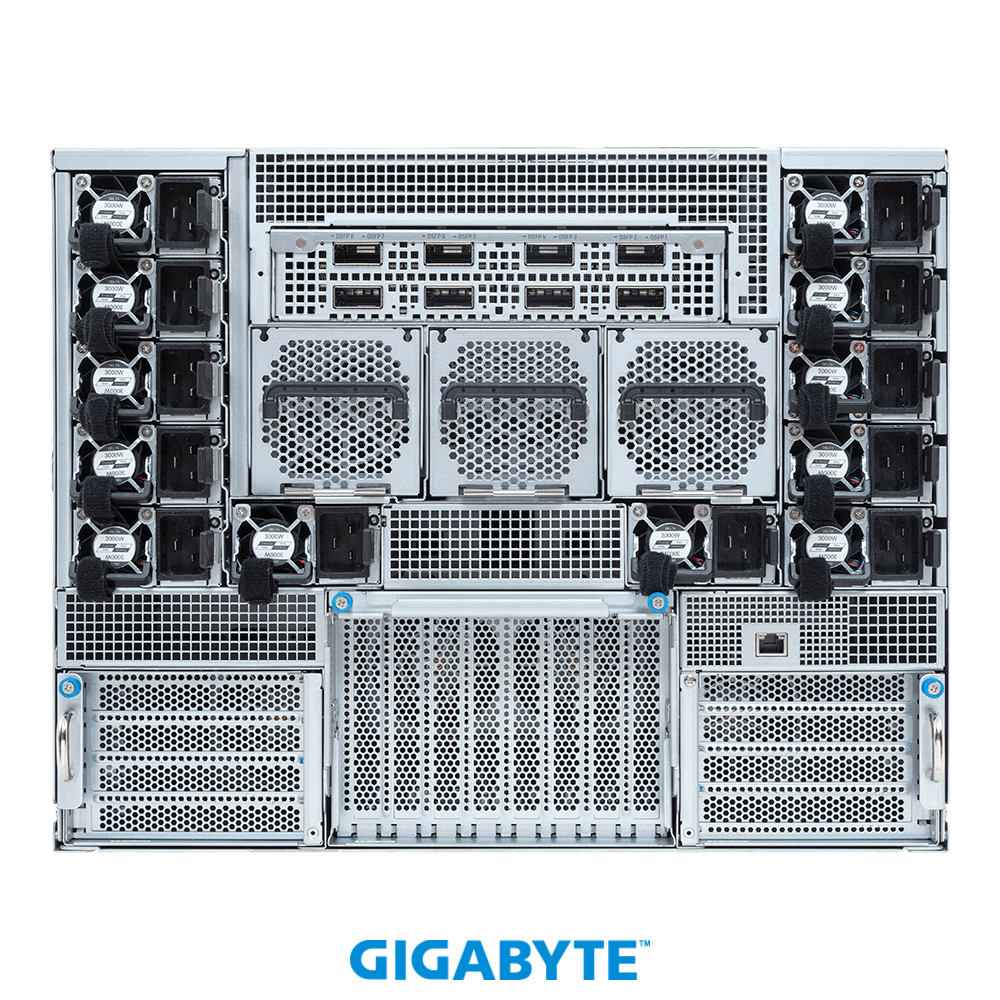

Rear I/O
8 x OSFP ports

MLAN board:
1 x MLAN port

Security Modules
1 x TPM header with SPI interface
– Optional TPM2.0 kit: CTM012
Power Supply[#1]
12 x 3000W 80 PLUS Titanium redundant power supplies [1]

AC Input:
– 115-127V~/ 14.2A, 50-60Hz
– 200-220V~/ 15.8A, 50-60Hz
– 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
– 240Vdc/ 14A

DC Output:
– Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
– Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
– Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

System Fans
Motherboard:
2 x 60x60x56mm
4 x 60x60x76mm

OSFP ports:
4 x 40x40x56mm

PCIe slots:
2 x 80x80x56mm

GPU tray:
15 x 80x80x80mm

Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Weight
Net Weight: 91.6 kg
Gross Weight: 95 kg
Packaging Dimensions
1200 x 800 x 620 mm
Packaging Content
1 x G894-AD3-AAX7
2 x CPU heatsinks
2 x Carriers
1 x L-shape Rail kit
Part Numbers
– Barebone package: 6NG894AD3DR000AAX7*
– Motherboard: 9MAB4PE2UR-000*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
