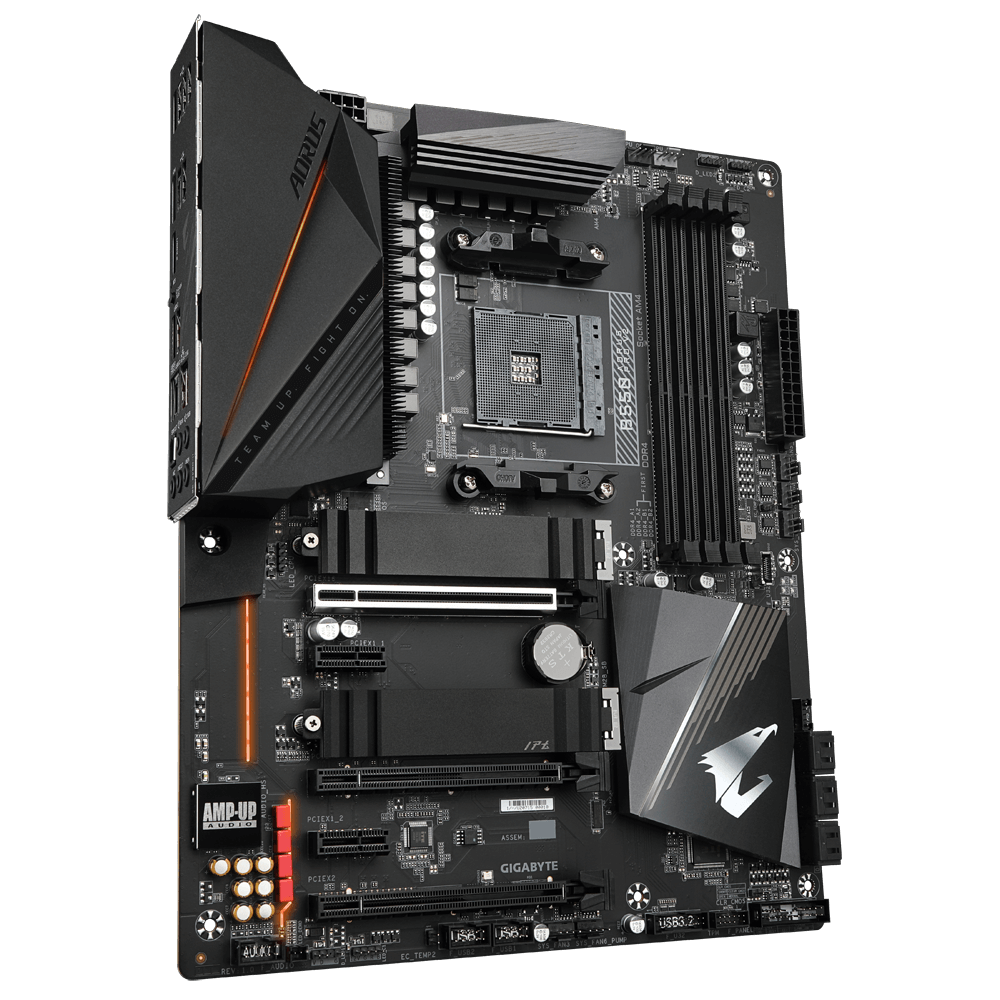

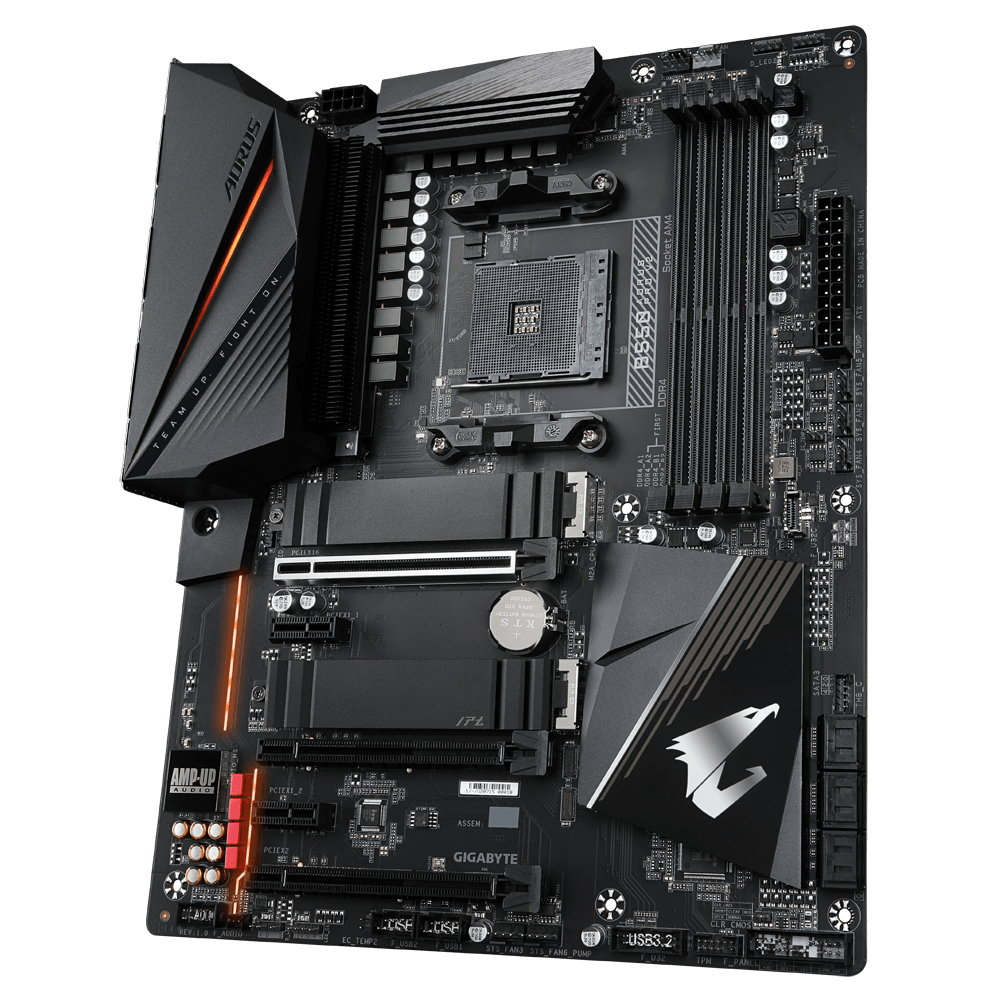

Gigabyte Used Refurbished AM4 Desktop motherboard AM4 B550 AORUS PRO V2

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, 2.5GbE LAN, Front & Rear USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front & Rear USB 3.2 Type-C™ and HDMI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation

Original price was: $116.00.Current price is: $98.00.

Payment Methods:

Add to compare

Add to wishlist

14 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

Ultimate power design

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

14 Phases

Digital Power Design

2X Copper PCB

Digital PWM

Driver MOSFET

All-Solid Capacitor

CPU Power Connector

Intersil Digital PWM Controller

12+2 Phases Digital Twin Power Design with 50A DrMOS

All-Solid Capacitor

8pin Solid Pin CPU Power Connectors

12*+2 Phases Digital Twin Power Design

Digital PWM Controller delivers appropriate voltage to the CPU.
With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total.
All-solid capacitors to improve Transient response and minimize oscillation.
24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS PRO V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors

*6+6 Phases parallel power design

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won’t stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

XMP 5400+

PCIe 4.0 Hardware Design

2X M.2 PCIe 4.0/3.0

Advanced Thermal Solution

Unthrottled performance is guaranteed by the advanced thermal solution which including Fins-Array Heatsink, Direct Touch Heatpipe and Thermal Guards. B550 AORUS motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.

Thermal Solution

Thermal Guard

Smart Fan 5

Direct Touch Heatpipe

Fins-Array Heatsink

LAIRD 5 W/mK Thermal Pad

2X M.2 Thermal Guard

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network and storage to keep you up to speed.

2.5G LAN

USB Type-C™

HDMI

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 AORUS motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Audio CODEC

Audio Design

Hi-Res Audio

Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Definitive Aesthetics

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

RGB FUSION 2.0

RGB FUSION Software

RGB FUSION APP

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Cycle Color
Static
Pulse
Flash
Double Flash
Music
Random
Game
Digital A
Digital B
Digital C

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

Ultra Durable

GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

PCIE Armor

Solid Pin

Q-Flash Plus

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

BIOS

APP Center

Easy Tune

@BIOS

System Information Viewer

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
(Please refer “CPU Support List” for more information.)

Chipset
1. AMD B550

Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
  * Actual support may vary by AMD CPU’s specification.
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1. Supporting PCIe 3.0 x4 mode
  * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
1. Supporting PCIe 3.0 x2 mode
  * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
2 x PCI Express x1 slots

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. support PCIe 3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10

USB
CPU:
1. 2 x USB 3.2 Gen 1 ports on the back panel
2. 2 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 6 x SATA 6Gb/s connectors
5. 1 x CPU fan header
6. 1 x water cooling CPU fan header
7. 4 x system fan headers
8. 2 x system fan/water cooling pump headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 2 x addressable LED strip headers
11. 2 x RGB LED strip headers
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
18. 2 x temperature sensor headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

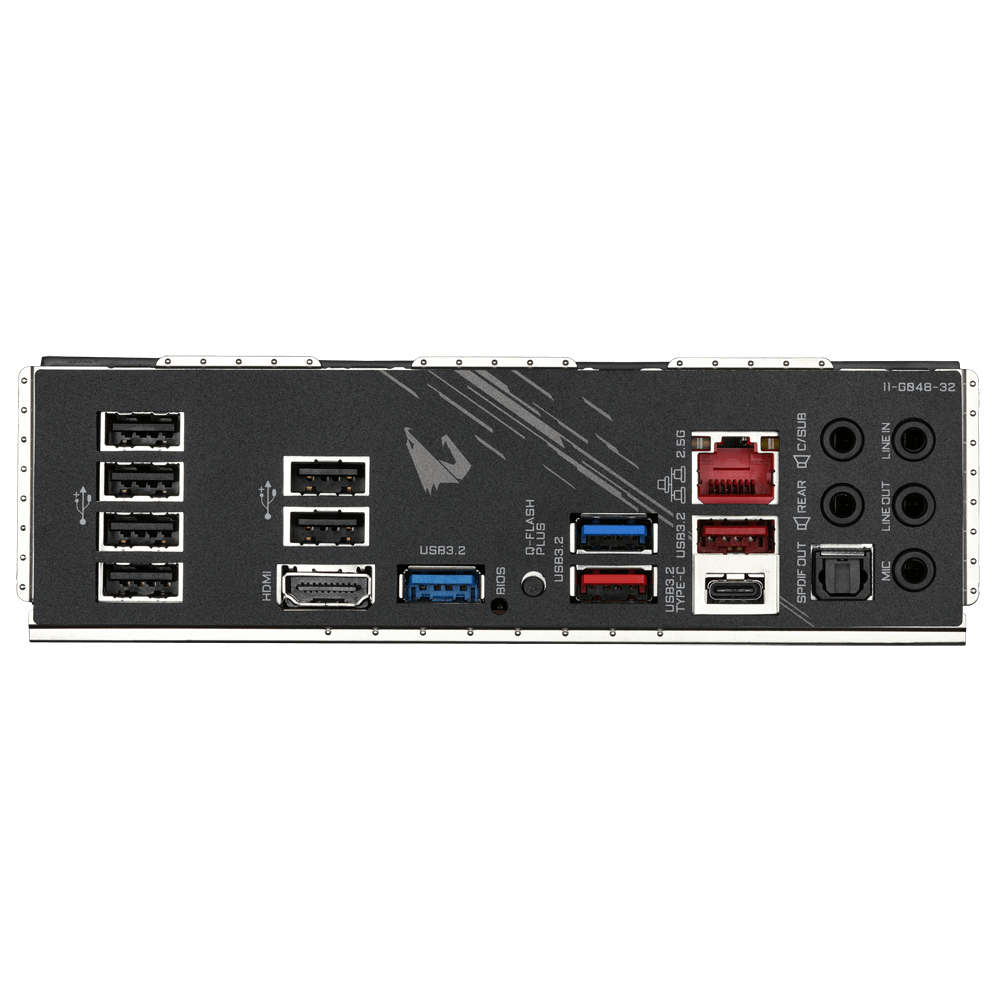

Back Panel Connectors
1. 1 x HDMI port
2. 2 x USB 3.2 Gen 1 ports
3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
4. 2 x USB 3.2 Gen 2 Type-A ports (red)
5. 6 x USB 2.0/1.1 ports
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

I/O Controller
1. iTE^® I/O Controller Chip

H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

Bundled Software
1. Norton^® Internet Security (OEM version)
2. XSplit Gamecaster + Broadcaster (12 months license)
3. Realtek^® 8125 Gaming LAN Bandwidth Control Utility

Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
