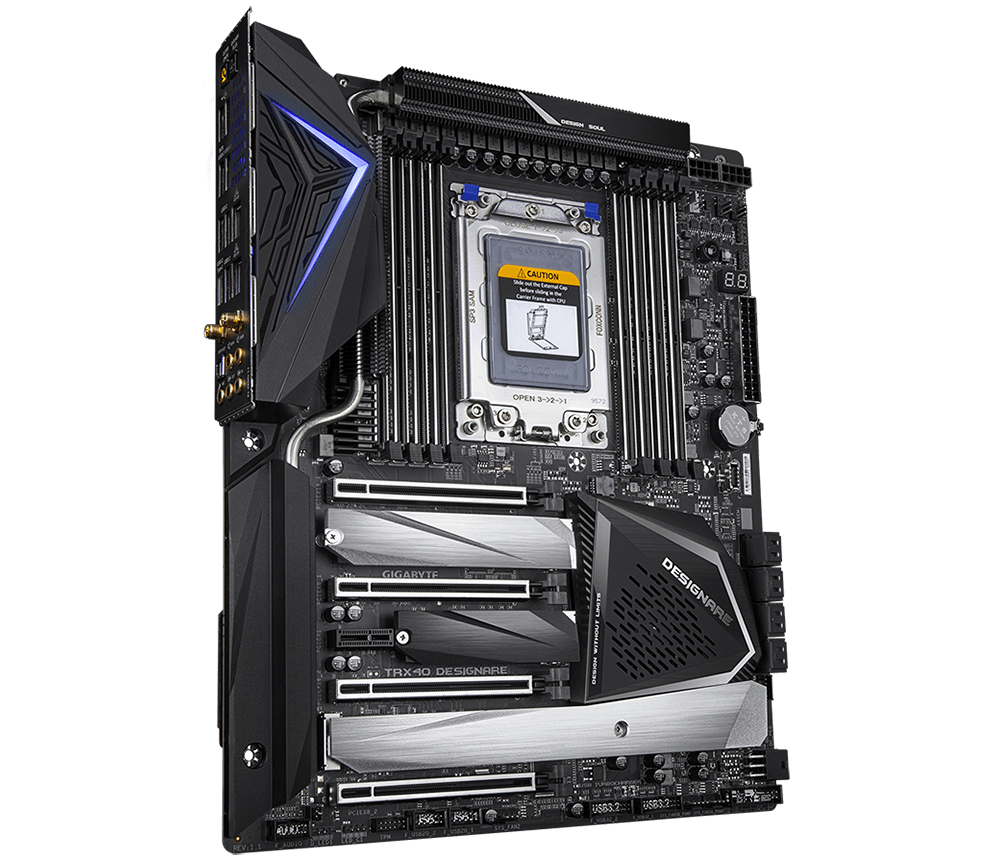

Gigabyte Used Refurbished AM4 DDR4 Desktop motherboard sTRX4 TRX40 DESIGNARE

AMD TRX40 DESIGNARE Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, Dual Intel LAN, 4 PCIe 4.0 M.2 with Thermal Guards, Bundled GC-Titan Ridge Add-In Card and AORUS Gen4 AIC Adaptor, Intel^® WiFi 6 802.11ax, Realtek High-End HD Audio

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
Triple Thermal Protection with Fin-Arrays and 8mm Maga-Heatpipe
Dual Intel® Gigabit LAN with cFosSpeed to shorten response time
4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT 5 with Antenna
Realtek High-End HD Audio with WIMA Audio Capacitors
Bundled 40Gb/s GC-Titan Ridge Add-In Card
Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Front & Rear USB 3.2 Gen 2 Type-C™ Header
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Original price was: $668.00.Current price is: $228.00.

Payment Methods:

Add to compare

Add to wishlist

20 People watching this product now!

Contact

Hurry and get discounts on all product. sales@catalogone.com

Shipping

Shipping solutions for the selected different quantity are currently available by Air: DHL,Fedex,UPS,EMS,Aramex or different Countries Logistics Air line.

Description

CPU
1. AMD Socket sTRX4:
  Support 3rd Generation AMD Ryzen™ Threadripper™ processors
(Please refer “CPU Support List” for more information.)

Chipset
1. AMD TRX40

Memory
1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
2. Quad Channel memory architecture
3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)

Audio
1. (For PCB rev1.1 / 1.2) Realtek^® ALC4050H codec+ ALC1220-VB codec
2. (For PCB rev1.3) Realtek^® ALC4080 Audio CODEC
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out

LAN
1. 2 x Intel^® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module
Intel^® Wi-Fi 6 AX200
1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  * Actual data rate may vary depending on environment and equipment.

Expansion Slots
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
3. 1 x PCI Express x1 slot
  (All of the PCI Express slots conform to PCI Express 4.0 standard.)

Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
2. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies

Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C)
3. 8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB
CPU:
1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x OC_PEG power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 4 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 8 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x GIGABYTE GC-TITAN RIDGE Add-in Card Connector
18. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
19. 1 x power button
20. 1 x reset button
21. 2 x temperature sensor headers
22. 1 x Clear CMOS jumper

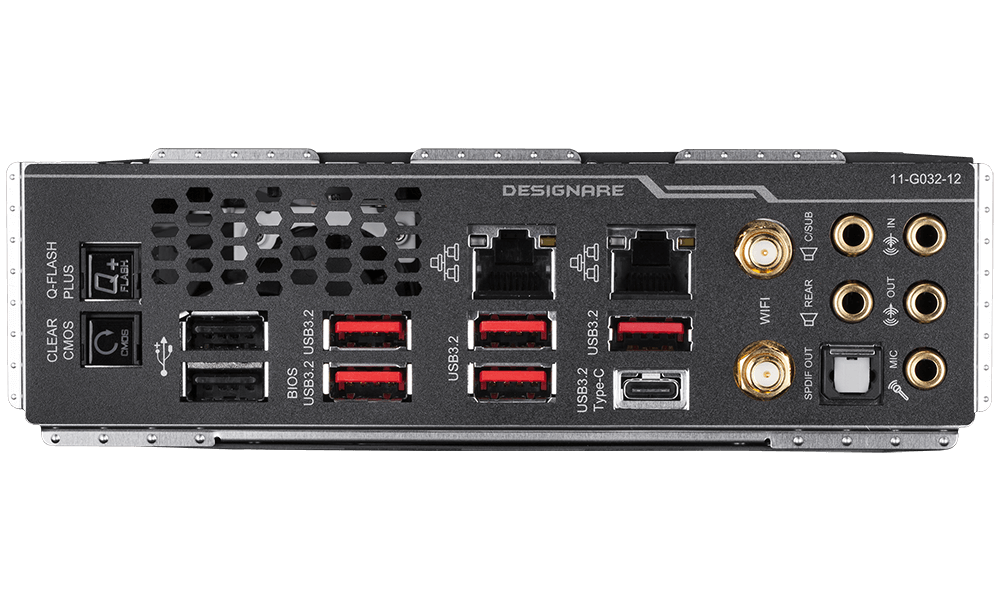

Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
4. 5 x USB 3.2 Gen 2 Type-A ports (red)
5. 2 x USB 2.0/1.1 ports
6. 2 x RJ-45 ports
7. 2 x SMA antenna connectors (2T2R)
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks

I/O Controller
1. iTE^® I/O Controller Chip

H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  Game Boost
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart Survey
  System Information Viewer
  USB Blocker
  USB TurboCharger
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)

Operating System
1. Support for Windows 10 64-bit

Form Factor
1. XL-ATX Form Factor; 32.5cm x 26.9cm

Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
